NASA JSC Planetary Analog Test Site
Joseph Bibby. Public domain (NASA / US government work).
The Planetary Analog Test Site at NASA JSC, universally called the Rock Yard, is an outdoor multi-acre terrain field in five named areas, built for integrated tests that put crew, suits, rovers and robots on the same terrain at the same time [1]. The five areas are the Mars Yard, the Mt Kosmo hill, the Lunar Yard with its three craters, the Sand Pit and the Cat Box, and each is a capability section below.
Three of the five sit on a sprayed concrete underlay, so most of the site is a made surface rather than a deformable soil bed. Nothing on it is a lunar or Martian simulant, and there is no vacuum, no thermal control and no gravity offload outdoors. The indoor JSC facilities that cover those cases sit in other buildings under other organizations.
A 2025 NASA survey of planetary rover mobility test practice places outdoor terrain fields like this one alongside indoor soil bins and single-wheel test rigs as one leg of a mobility test program, useful for geometry, obstacle negotiation and operations rehearsal but not for the bearing-capacity and slip measurements a controlled soil bed is built to produce [7]. Other national programs have built comparable outdoor fields for the same integrated purpose: DLR’s Moon-Mars Test Site, for example, pairs a similar strewn-terrain area with instrumentation the Rock Yard does not have, an explicit point of contrast rather than a shared design [8].
Laboratory data
Section titled “Laboratory data”| Parameter | Value |
|---|---|
| Operator | NASA JSC |
| Location | Houston, Texas, United States |
| Commissioned | Not published. In documented rover use by at least 2015 |
| Type | Outdoor analogue terrain field in five named areas |
| Floor area | Multi-acre; the five areas total roughly 6,000 m2 as dimensioned |
| Capabilities | Mars Yard, Mt Kosmo, Lunar Yard, Sand Pit, Cat Box |
| Simulant or terrain | Crushed limestone, decomposed granite, Blackstar granite, basalt, sand, gravel |
| Instrumentation | None installed. Slope maps and Gazebo world models available for some areas |
| Ground truth | Not published. No independent position measurement described |
| Fidelity limits | No simulant, no vacuum, no thermal control; three areas on sprayed concrete |
| Access | Test planning, consultation and integration offered as a service; no lead time published |
| Cited by | Robonaut 2 on Centaur 2, Resource Prospector [3], PUFFER [9] |
Source: [1].
Where outdoor analog terrain sits among test methods
Section titled “Where outdoor analog terrain sits among test methods”A rover has to be shown to cross rocks, climb slopes and navigate before anyone trusts it on another body, and the three ways of showing it each leave a gap. A soil bin or single-wheel rig controls the soil and measures wheel forces, but at the scale of one wheel or one lane. A field site such as the Rock Yard offers the whole vehicle on geometry and obstacles with no control of soil. Flight data give the real surface but only for the vehicles that have flown. The sections below place the Rock Yard among these, and state for each family whether the method has flown, has been used on Earth in the field, or has only been proposed.
Terramechanics and soil-bed measurement. The wheel-soil relations used to predict sinkage and drawbar are fits to the apparatus that produced them, a point made in 1968 from inside the Army mobility program [21]. The only in situ Martian soil values come from Sojourner: shear force from motor current, with a cohesion average of 0.238 kPa that rests on assuming the friction angle equals the photographed angle of repose [20], and friction angles of about 34 to 39 degrees for cloddy deposits and 26 to 28 degrees for drift deposits [27]. The Rock Yard supplies none of these quantities, which is why a 2025 NASA review sets soil-bed and wheel-level tests beside outdoor fields rather than in place of them [7].
Outdoor terrain fields built for rovers. The Rock Yard is one of several. Before MER, JPL ran the Rocky 7 prototype, which carries a mini-manipulator with non-backdrivable joints [30], in a three-day Mojave campaign in which all six stated objectives were met, including a 200 m landerless traverse, reported qualitatively with no slip or success-rate figures [15]. The same rover’s desert navigation tests used a sun sensor for absolute heading and gave 6 percent relative position error and 3.4 degrees of heading error over more than one kilometer in three traverses by one rover, with a known sun-sensor miscalibration [14]. Earlier Rocky 3.2 work combined an indoor terrain simulator with an overhead metrology system and planned outdoor traverses at Avawatz near Baker, California [17]. The last major MER operations rehearsal used the FIDO rover at one field site, with a stated difference in size and mass from the flight vehicles and no quantified navigation performance [16]. DLR’s Moon-Mars Test Site publishes its requirement-to-terrain chain and builds steep slopes from drainage concrete so they do not slump [8], the same construction choice the Rock Yard made with sprayed concrete. PISCES, a Mauna Kea analog site in Hawaii proposed as a rentable NASA test facility, is a plan with wheel design targets and no test data [11].
Characterizing the terrain itself. A field site is useful in proportion to how well its rocks match a target surface. A 1997 analysis fit rock size-frequency distributions at Viking sites and Earth analog sites with exponentials, with correlation coefficients of 0.96 to 0.99 at the Viking sites and above 0.90 at the analogs [12]. A JPL performance evaluation used a family of Mars analog terrains built from a published rock size-frequency model, with an overhead optical ground truth, to measure rover navigation as a function of terrain difficulty [13]. The Rock Yard publishes a rock height range of 0.05 m to 1.0 m [3] but no size-frequency distribution, so a result there cannot be placed on that scale.
Comparable sites in current use. JPL’s MarsYard III is the closest peer: 66 m by 36 m, over 2000 m2 of terrain with 7 slopes of variable angle and cohesion, built from beach sand, decomposed granite, brick dust and volcanic cinders with basalt rocks placed to match Mars rock size distributions [31]. The operator states that its large rocks are less dense than Mars rock so they can be moved by hand, and the page gives no soil strength values or slope angles, the same gaps as the Rock Yard [31]. At Kennedy, the IPEx Autonomy Test-Site is a 21.3 by 33.5 m enclosure with a granular bed, scattered rocks, a full-scale lander mockup, low-angle stadium lighting and motion capture for robot pose [33]. A 2024 five-day demonstration there ran 334 excavation and unload cycles and 58.1 km of driving in 77 h 46 min, and penetration resistance rose by up to 11 times after repeated excavation, a soil-state change that a field site without ground truth cannot record [32]. The Artemis Arena at Kennedy is 6.8 by 5.0 m with a 45 cm bed of BP-1 crushed basalt and specified boulder and crater obstacles, offered to outside customers [34]. The Colorado School of Mines reports a new Lunar Surface Simulator with a gantry-based rover motion capture system, in a news article that gives no dimensions or soil properties [38]. Verti-Arena, an 8 by 8 m indoor testbed with ten terrain types, 0.7 m of elevation difference and eight-camera motion capture, serves 1/10-scale vehicles and has been used on terrestrial terrain only [37]. All of these are ground facilities at 1 g; none is flown hardware.
Transferring 1 g results to reduced gravity. The Rock Yard offers no gravity offload [1], so any result there needs a transfer rule. Parabolic flight tests of a single wheel on the Falcon 20 found that reduced-weight testing overstates mobility, with drawbar pull to weight falling by 20 percent or more and sinkage rising up to 40 percent in lunar gravity at equal load [36]. Granular scaling laws predicted lunar-gravity performance with a conservative bias, and the cone index gradient matching method did not reproduce it [36]. A 2025 NASA overview of tire-ground contact modeling lists semi-empirical, finite element, SPH and discrete element methods and states that the model comparison is preliminary and not validated against test data [35]. These are laboratory and parabolic-flight results, not flight results.
Rover navigation data and ground truth. The MADMAX data set pairs stereo, inertial and omnidirectional imagery from a human-portable sensor rig with RTK GNSS ground truth quoted at 2 cm horizontal and 5 cm vertical, and compares hand-held sequences with rover-mounted ones [18]. The Rock Yard has no comparable stated ground truth [1].
Crewed and operations field tests. Multi-day crewed tests of a pressurized rover at the Black Point Lava Flow in Arizona produced habitability and productivity results from only one or two crews per condition [25]. A field test of a walkabout-first strategy needed 74 sols against an estimated 84 for a linear traverse of the same 14 stations, an extrapolation, not measured rover time [23]. A suited caving study with one subject identified darkness, cold, confinement and loss of signal as the requirements that separate subsurface from surface EVA, as engineering judgment without hardware tested [26]. Rock Yard use for RP15 sits in this family, validating distributed operations rather than mobility [3].
Instrument validation at analog sites. The TRIDENT drill was validated at Mars and lunar analog field sites, where the record is of failures: faults were counted without a denominator, and the proposed mitigation of a smaller bite size has only field evidence, taken at ambient pressure and temperature [24].
Legged and heavy testbeds. Ambler, a 2500 kg six-legged walker, was measured on Earth on a wall-powered tether with 600 W of propulsion power above a 1400 W steady-state overhead and 2 percent dead-reckoning error, and was not space qualified [19]. It shows what a terrain-field test of a testbed does and does not carry to a flight vehicle.
What has flown. Apollo 15 drove the Lunar Roving Vehicle on slopes of 10 to 15 degrees, so the 25 degree requirement was never demonstrated in flight [22]. Sojourner is the flight reference for rover operations on Mars, with operations figures from the surface [28] and a flight navigation error budget [29]. None of the Rock Yard campaigns above is a flight result: RP15 was canceled in 2018 [3].
Capabilities
Section titled “Capabilities”Working volumes, slopes and materials for all five areas below come from the operator’s own facility description [1] unless a source is stated otherwise.
Mars Yard
Section titled “Mars Yard”| Parameter | Value |
|---|---|
| Working volume | Approximately 40 x 45 m |
| Test article limits | Suited subjects, Centaur 2 and the RP15 rover run to date [3] |
| Vacuum | Not applicable. Outdoors at ambient pressure |
| Temperature | Not controlled. Houston outdoor conditions |
| Illumination | Not applicable. Terrestrial sky; low-light work is done at night |
| Simulant or terrain | Stabilized crushed limestone and decomposed granite, strewn basaltic rock |
| Slope | Level. Graded slopes are at Mt Kosmo |
| Gravity offload | Not available outdoors. Full Earth weight |
| Instrumentation | None installed. Slope map and Gazebo world model available |
The Mars Yard is the reference surface for the site: a stabilized crushed limestone and decomposed granite base covered with strewn basaltic rocks, over an underlay of sprayed concrete. The Resource Prospector team, describing the same yard from a user’s side, gives its rocks as 0.05 m to 1.0 m in height [3].
Mt Kosmo
Section titled “Mt Kosmo”| Parameter | Value |
|---|---|
| Working volume | Approximately 30 x 43 m, summit about 7 m above the Mars Yard |
| Temperature | Not controlled. Houston outdoor conditions |
| Simulant or terrain | Same as the Mars Yard, over sprayed concrete stabilizing the slopes |
| Slope | Approaches from 15 to over 30 degrees, fixed by construction |
| Gravity offload | Not available. A rover climbs at full Earth weight |
| Instrumentation | None installed |
Mt Kosmo is the only graded terrain on the site, and its slopes are set by construction rather than adjustable. The sprayed concrete underlay is there to hold the slopes in place, which also means a climb on it is a climb on a made road. The Resource Prospector description of the site gives a 5 m tall hill and slopes from flat to 20 degrees [3], both lower than the operator’s own figures; neither document reconciles the two.
Lunar Yard
Section titled “Lunar Yard”| Parameter | Value |
|---|---|
| Working volume | Approximately 40 x 40 m, with three representative lunar craters |
| Temperature | Not controlled. Houston outdoor conditions |
| Simulant or terrain | Stabilized crushed limestone covered with Blackstar granite, over sprayed concrete |
| Slope | Crater walls only; angles and crater dimensions not published |
| Gravity offload | Not available. Full Earth weight |
| Instrumentation | None installed |
The Lunar Yard swaps the Mars Yard’s basaltic surface cover for Blackstar granite and adds the three craters. Crater diameters and depths are not published, and the granite is a terrestrial aggregate rather than a lunar simulant.
Sand Pit
Section titled “Sand Pit”| Parameter | Value |
|---|---|
| Working volume | Approximately 15 x 30 m; depth not published |
| Simulant or terrain | Masonry sand over local soil, mostly unconsolidated clay |
| Gravity offload | Not available. Full Earth weight |
| Instrumentation | None installed |
One of the two deformable areas on the site, and the only one described purely as sand. No depth, relative density target or preparation procedure between tests is published.
Cat Box
Section titled “Cat Box”| Parameter | Value |
|---|---|
| Working volume | Approximately 14 x 50 m; depth not published |
| Simulant or terrain | Coarse gravel with masonry sand at one end, over local soil |
| Slope | Set by sculpting; range not published |
| Gravity offload | Not available. Full Earth weight |
| Instrumentation | None installed |
The Cat Box is the reconfigurable area: the only one the operator describes as supporting limited sculpting into various terrain, which makes it the place where a specific crater, berm or trench geometry can be built for a campaign.
Instrumentation
Section titled “Instrumentation”The published facility description lists terrain data as an available product rather than instrumentation as an installed capability: slope maps and Gazebo world models exist for some areas. No permanent motion capture, total station or load instrumentation is described for any of the five areas, unlike the Glenn and Kennedy soil bins, so a slip or sinkage measurement made here rests on the article’s own sensing.
Site support is 110 V and 220 V AC electrical power, the latter on an SS2-50R outlet, a climate-controlled work and mission support area with 110 V power, limited non-climate-controlled storage during testing, pop-up shade canopies, and space suit hardware and test subject support on an as-required cost basis [1].
What it does not reproduce
Section titled “What it does not reproduce”Deformable terrain, over most of the site. Three of the five areas sit on a sprayed concrete underlay beneath a stabilized aggregate base. Sinkage, slip and drawbar pull on those surfaces are properties of a made road, not of regolith. The Sand Pit and Cat Box are the exceptions, and the Cat Box is the only area described as reconfigurable.
Regolith of any kind. The listed materials are crushed limestone, decomposed granite, Blackstar granite, basalt, masonry sand, coarse gravel and local clay. No lunar or Martian simulant appears in the facility description, and no preparation or density control procedure is published, which is the structural difference between this site and the GMRO bins or the Glenn SLOPE lanes.
Lighting. The site is outdoors under Earth’s sky and atmosphere. Low solar elevation and the hard shadow of the lunar south pole are not producible; night operations are the substitute, and the lunar lighting problem is addressed instead in the rendered visual model driving the B16 motion table [2].
Gravity. Nothing outdoors offloads. A rover driving the Mars Yard or climbing Mt Kosmo does so at full Earth weight.
Weather. Houston conditions apply. The published service list offers pop-up shade canopies and a climate-controlled support area, which locates the problem.
Campaigns run there
Section titled “Campaigns run there”Resource Prospector RP15 distributed operations, 2015. RP15 was a Phase A engineering test unit taken from concept to a rover driving in the lunar analogue Rock Yard within a single year [3]. The point of running it there was to validate fully distributed operations: the driver and co-driver worked from Ames, rover systems from Johnson and payload operations from Kennedy, with command allocations refined through fortnightly procedural simulations that began on paper and voice calls and then added data from a processor-in-the-loop rig. The rover was driven by waypoints, sized against an expected round trip command and control time of six to over 25 seconds for the flight mission [3]. Its flight software was built on NASA’s Core Flight Software, and the 2015 build 1 provided hardware interfaces, basic mobility, waypoint driving, odometry and inertial measurement unit localization, basic error checking and camera services. The team records that the rover was capable of operating in the yard by day and by night [3].

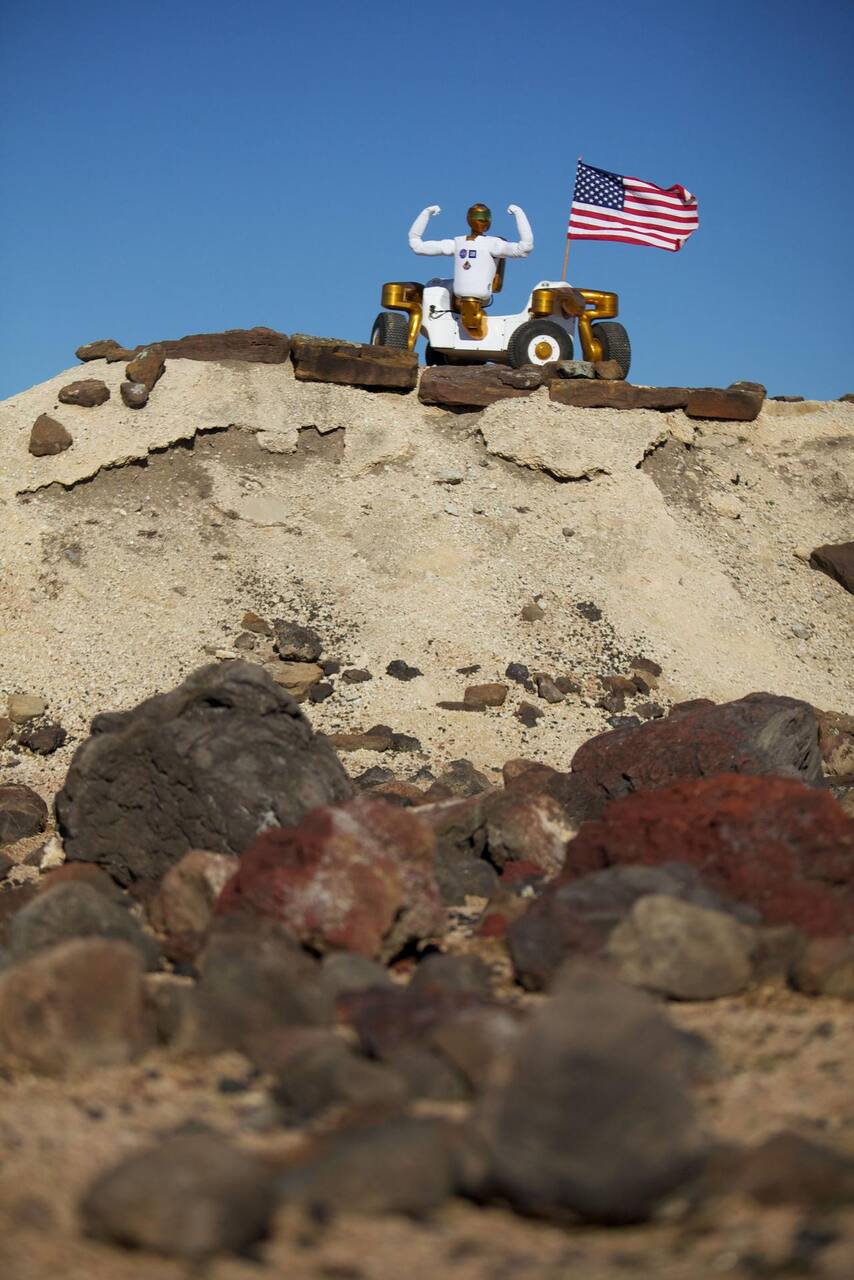

Robonaut 2 on Centaur 2, February 2011. The Centaur 2 wheeled base, derived from lessons learned on the Space Exploration Vehicle, was integrated with Robonaut 2 and run at the Planetary Analog Test Site [1]. The Space Exploration Vehicle lineage is itself a wheeled chassis under a reconfigurable upper body, the same layout description JSC used for ATHLETE’s own “Centaur-like” cargo variant, a humanoid torso on a wheeled frame built for a different mission [10].
PUFFER mapping trials. JPL’s Pop-Up, Flat-Folding Explorer Rovers ran autonomous mapping trials at the Mars Yard, using multiple trails through the strewn rock to evaluate mapping performance on the same terrain the operator catalogs here [9].
Other NASA JSC facilities named in the same catalog
Section titled “Other NASA JSC facilities named in the same catalog”The NASA JSC analogs and mockups catalog that describes the Rock Yard also lists several indoor facilities [1], and a 2024 full paper describes a further one [2]. They sit in different buildings under different organizations, they are not part of this test site, and none of them has a published description detailed enough to carry a laboratory page of its own yet, so their figures are recorded here in prose.
NASA. Public domain (NASA / US government work).
Chamber B is the human-rated thermal vacuum capability: an internal volume 7.6 m (25 ft) in diameter by 7.9 m (26 ft), a pressure range from 1 x 10^-6 torr to 760 torr and a low temperature range of -300 F, with a traversing monorail that provides weight relief to one suited crew member at a time and dual crew airlocks for access and for moving test crew in and out during a test [1]. The facility’s own test planning guide frames the chamber as a service offered to both NASA and commercial hardware and software customers, with a stated roadmap of milestones, roles and required inputs rather than a fixed price list [4].

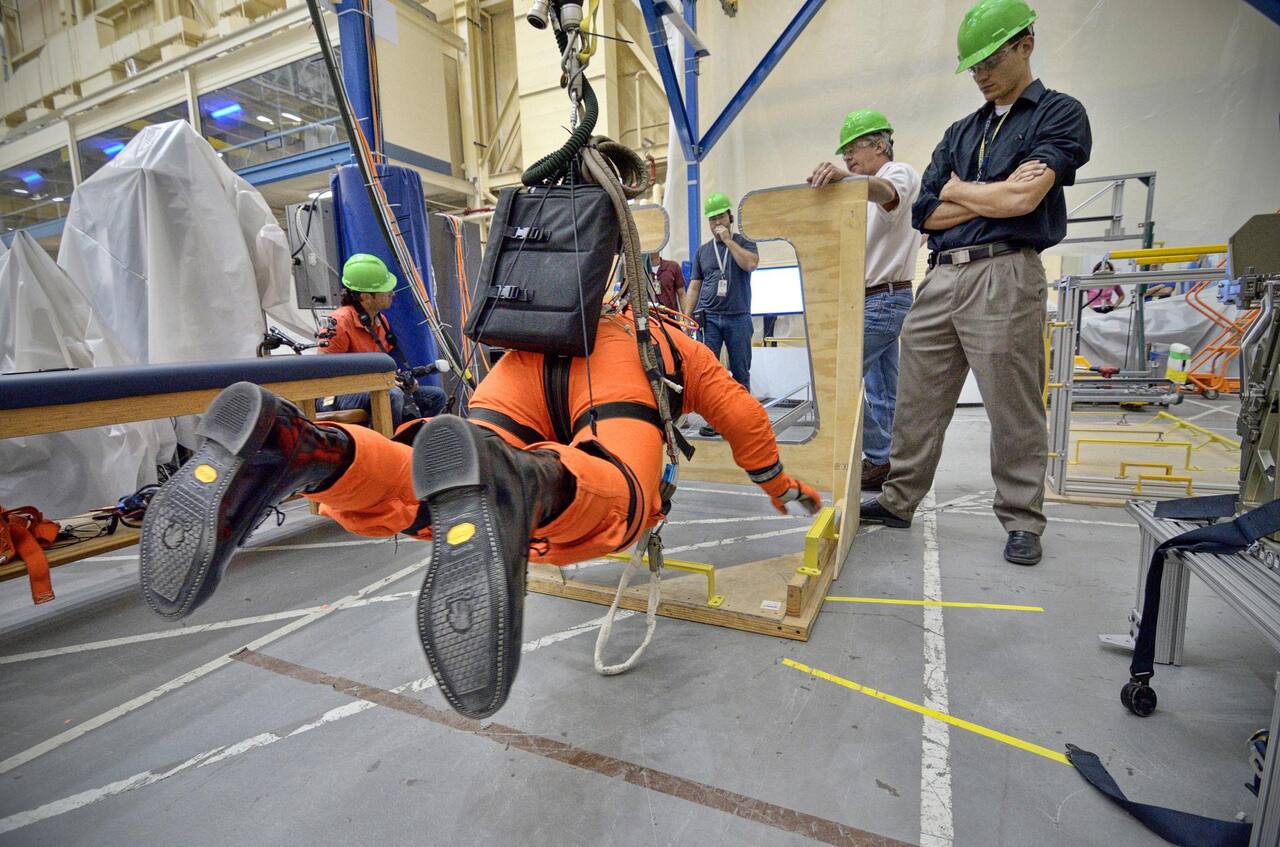

ARGOS, the Active Response Gravity Offload System, has its own page: NASA JSC Active Response Gravity Offload System. It is an overhead bridge crane arrangement 41 x 24 x 25 ft overall giving a 13 x 30 x 15 ft workspace at 750 lb offload capability, with gimbal payload interfaces for suited, unsuited and unmanned articles, pressurized breathing air, suit cooling water and AIBEL motion tracking [1]. A companion paper on characterizing the suit-side gimbal describes fourteen subjects used to locate the pivot point against each subject’s suited center of gravity, since a pivot point set even slightly off that point produces a righting moment that makes the rig artificially stable or artificially unstable [5]. The same offload problem, tracking a moving article on two horizontal axes rather than fixing it under one overhead crane, has been attempted on a smaller scale with an infrared-tracked counterweight rig built for rover testing at a different laboratory, evidence that JSC’s overhead-crane geometry is one of more than one way to cancel inertial and friction forces during a reduced-gravity test [6].
The Partial Gravity Simulator is servos, air bearings and gimbals providing reduced gravity simulation for astronaut training, task evaluation and EVA equipment development [1]. The Precision Air Bearing Floor is a flat, smooth surface giving two-dimensional frictionless motion to large articles floated on perforated pads over a cushion of compressed air, for rendezvous and contact testing and low or zero g mass handling. The Building 360 Lunar Development and Dust Containment Room covers dust work [1].
The B16 six degree of freedom motion table is the newest addition. Installed in the B16 Mini Dome at the Systems Engineering Simulator and commissioned by Mikrolar in January 2023, it carries 2,500 lb on a 69.25 in platform with plus or minus 25 in of horizontal travel, plus or minus 12 in vertical, plus or minus 28 degrees of roll, pitch and yaw, and 1 mm repeatability and accuracy across all six axes, with mechanical brakes on every axis [2]. It drives a lunar south pole visual model built on the Trick simulation framework with a multibody dynamic model of the Lunar Terrain Vehicle front-entry reference design, NASA JSC Engineering Orbital Dynamics model, a nodal electrical power system model in GUNNS, and a contact model, so that a shirt-sleeve subject on the platform feels the physical consequence of driving the simulated rover [2].
It was used in 2022 and 2023 for a preliminary handling qualities study of the LTV front-entry reference design, with a shirt-sleeve subject on the platform driving through a virtual reality view of the lunar south pole [2]. Drivers reported that braking stopped the vehicle quickly, with some describing it as abrupt, twitchy and harsh, and some observed that the one-sixth g environment affected stopping distance. The stated rationale for building it is that the only other lunar rover motion simulator was a modified US Air Force SMK23 flight simulator built at Marshall in the late 1960s, which ran a moving map of a smooth Maria area under a television camera, and that no other lunar surface simulator with these capabilities exists [2]. The LTV that the motion table drives is the same vehicle class a 2025 NASA mobility survey uses as its case study for identifying the test gaps a wheeled lunar rover still has to close, tires and mobility hardware rather than driver handling [7].
What is not established
Section titled “What is not established”Nothing on the outdoor site is a measurement rather than a description: no grain size distribution, bulk density, cohesion, friction angle or bearing capacity is published for any of the five areas, and no preparation, raking or compaction procedure between runs is stated. The site’s own figures disagree on scale, calling itself a multi-acre field in one place and a quarter acre in another, and no accuracy, resolution or survey method is given for the slope maps and Gazebo world models it does offer [1]. The B16 motion table’s handling qualities results are a simulation’s answers, not a rover’s: the terramechanics model computes only compression, bulldozing and lumped rolling resistance under uniform soil properties, half the test drivers showed simulator sickness symptoms and five of thirteen did not finish the traverse, and a table angle discrepancy ran one task at 15 degrees rather than the intended 20 without being noticed until after the fact [2]. Resource Prospector’s RP15 distributed-operations run predates the program’s 2018 cancellation and reports no drilling, water-detection or traverse performance, only that the rover operated [3]. ARGOS’s own documentation gives no offload force accuracy, bandwidth, residual horizontal force or cable-angle error for its overhead crane, so the rig’s fidelity as a gravity analog has no published error bar even where a pivot point has been characterized against a subject’s center of gravity [1][5].
