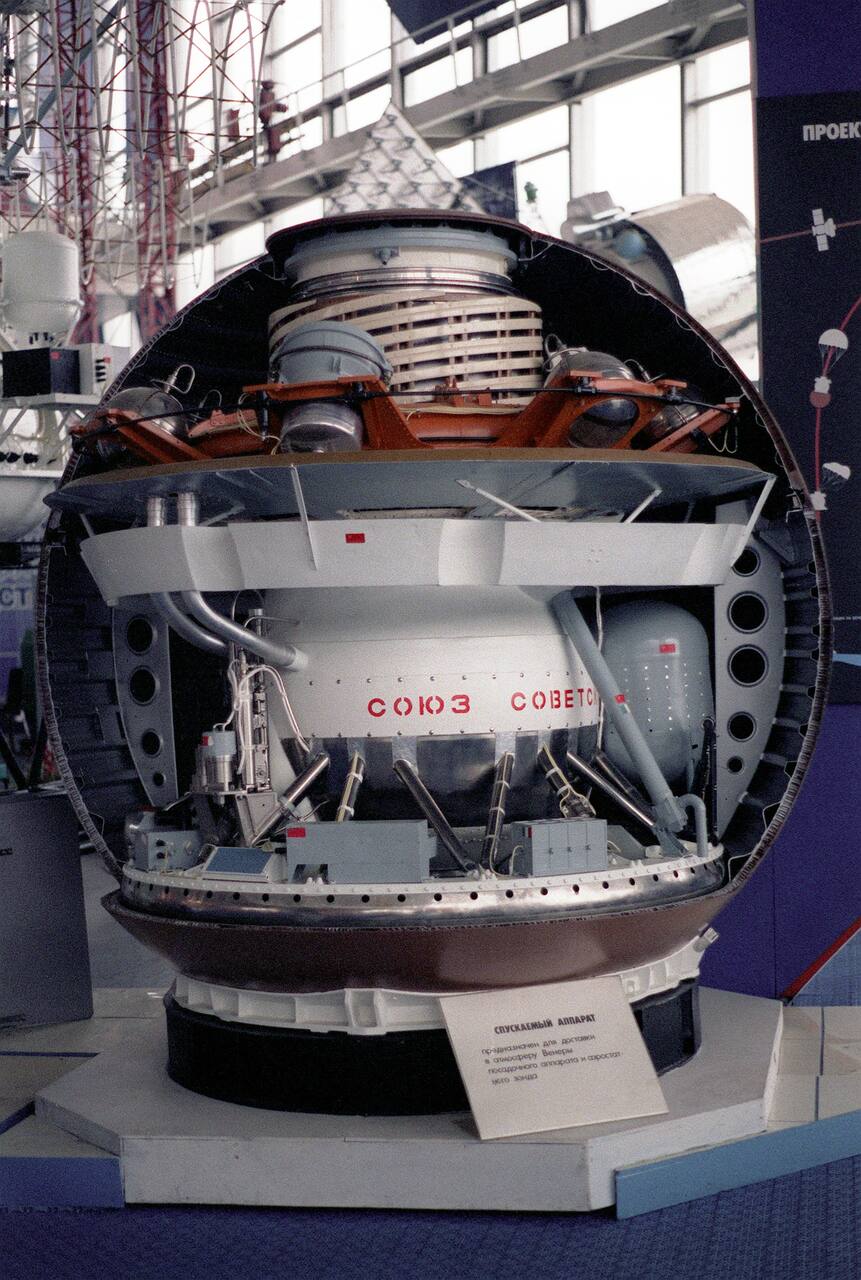

Don S. Montgomery, US Navy (Ret.). Public domain (US government work).
Overview
Section titled “Overview”A machine that lands on Venus is not exploring an environment so much as racing it. At the surface, temperature runs near 460 C and pressure near 90 bar, conditions under which aluminum and most conventional electronics simply stop functioning [7]. No structure built of ordinary materials survives there indefinitely, so every Venera and VeGa lander was designed around a clock rather than a service life: how long the interior stayed cool enough to work before it equalized with the outside.
The Venera and VeGa landers are the only machines that have ever operated on the surface of Venus. Venera 7 made the first successful soft landing there on 15 December 1970, returning a single telemetered surface temperature of 747 K before its transmitter went silent [1]. Venera 9 and 10 followed in 1975, returning the first images from the surface of another planet and running for 53 and 65 minutes with the interior still below 60 C when contact ended [2]. Across the Venera and VeGa lander line, demonstrated electronics survival on the surface ranges from 23 to 127 minutes [5], and that range is the entire flight record of surface operation on Venus: it has not been extended since.
Design, and why it never diverged
Section titled “Design, and why it never diverged”The lander that could survive Venus at all was a sealed, thermally insulated pressure vessel, pre-chilled before atmospheric entry so the interior started the descent cold. Venera 9 and 10 were conditioned to between -8 and +10 C at separation from the flyby bus, entered at 10.7 km/s decelerating to 250 m/s, released their main parachutes at 65 km and jettisoned them at 50 km to fall the rest of the way on the aeroshell alone, reaching about 7 m/s at touchdown into a crushable, torus-shaped landing ring [2]. That profile, entry near 10 to 11 km/s, parachute jettison near 50 km and touchdown near 7 to 8 m/s, holds across the later Venera missions as well [4]. The descent through the dense lower atmosphere was deliberately fast, trading a harder landing for less time spent soaking up heat before the vessel reached the ground and started spending its cold reserve [2].
Every Venera and VeGa lander used that same pre-chilled sealed-vessel architecture; nothing else could be built and qualified for flight in the time available. The mission did not necessarily end when the electronics failed: Venera 9 and 10 stopped on an automatic command when the radio window to the flyby bus closed, with the interior still short of the survival limit [2]. That means the true thermal endurance of the design, as opposed to the time it happened to have a working relay, was never actually measured to its end on those two landers.
What the ground was actually like
Section titled “What the ground was actually like”Venera 9 and 10 measured 730 to 740 K and 88 to 94 atm at their landing sites, with surface wind of only 0.5 to 1 m/s measured a meter above the ground, both sites showing hard rock or slabs with a fine-grained matrix between them rather than deep regolith, and a gamma densitometer reading a bulk density of 2.8 plus or minus 0.1 g/cm3 for the hard material at the Venera 10 site [3]. That densitometer arm, striking the ground at 7 m/s under a 2 kg mass, left no visible mark at the Venera 10 site and only possibly cracked one boulder at Venera 9, the only in-situ mechanical strength data anyone has from the surface of Venus, and the most surprising result from either lander was optical rather than thermal: both carried floodlights because natural illumination under the cloud deck was expected to be low, and natural daylight completely overwhelmed the artificial sources at both sites, a design assumption the mission got backward [3].
What has changed since, and what it would enable
Section titled “What has changed since, and what it would enable”The Venera lifetime is a property of the vessel, not a hard limit set by Venus itself. Two lines of work since have targeted it directly.
The first is qualifying hardware against the actual atmospheric chemistry rather than against temperature and pressure alone. Reproducing temperature and pressure is explicitly insufficient to qualify parts for a prolonged surface mission [6], which is why the ground chamber built for this purpose carries nine independently mass-flow-controlled gas streams carrying SO2, COS, CO, H2O, HCl, NO and HF alongside the carbon dioxide and nitrogen, rather than a furnace and a plain pressure vessel [7]. Materials testing in that chamber found gold and bulk ceramics such as alumina, fused quartz, silicon carbide and silicon nitride showing no measurable change after 42 days at 92 bar and 467 C, while common steels and several nickel alloys grew double-layered oxide and sulfide scales in the same exposure [14].
The second is removing the requirement for a cooled interior altogether. Silicon carbide junction field effect transistor integrated circuits have run continuously at 500 C for 10,100 hours, 421 days, in air, with output parameters stable to within 5 percent after a 100- to 200-hour burn-in [10]. The failure mechanism at that temperature is not the semiconductor: it is thermal-stress cracking of the passivation stack over patterned metal topography, which admits oxygen to the interconnect below [9]. Under reproduced Venus chemistry rather than air, a packaged silicon carbide clock circuit has run for 60 days at 465 C and 90 bar [8]. A ten-chip lander sensor board built on that technology was tested unsheltered in the chamber and failed at only 107 C during heat-up, a fault traced to a wafer process defect from fabrication rather than to a limit of the device technology itself [11]. A concept study for a 13.56 kg uncooled surface station built on this electronics line targets one Venus day, about 120 Earth days, using natural convection and a sodium sulfur battery in place of a pressure vessel and active cooling [12].
Against 23 to 127 minutes, that target is a change of roughly three orders of magnitude in surface duration, from the same environment [5][12].
Derived data still in service
Section titled “Derived data still in service”No engineering description of the Venera or VeGa lander structure, pre-chilling system, imaging system, surface drill or bus relay has been published in the open literature; the one gross structural figure available is a mass comparison, in which the Venera and VeGa entry spheres were traded against Pioneer Venus aeroshells in a later mission study whose 700 kg vehicle is described as comparable in mass to a Venera lander [6]. What survives in active use is the derived atmospheric data set. Venera and Pioneer Venus probe measurements together form the Venus International Reference Atmosphere, which the current NASA Venus-GRAM engineering model still runs on, height- and latitude-dependent from 0 to 100 km and carrying mean zonal wind data only to 80 km before the model switches to extrapolation [13]. The underlying atmosphere data in that model has not been updated since 2005 [13].
What is not established
Section titled “What is not established”No source consulted here describes the actual Venera or VeGa lander hardware: mass, internal layout, the pre-chilling method, the drill and its sample transfer, and the flyby-bus relay link are all absent from the open literature, leaving the 700 kg-class mass comparison as the only structural figure available [6]. Both Venera 9 and 10 landed on the illuminated side at similar low elevations, so nothing in that record constrains the night side, higher latitudes, or higher elevation, and the competing explanations for the hard surface material at both sites are not resolved by the panorama and densitometer data alone [3]. Neither lander reached its true thermal limit, since both ended on a radio-window command rather than a failure, so the achievable endurance of that specific sealed-vessel design was never measured to its end [2]. On the successor side, the silicon carbide electronics that could remove the pressure-vessel requirement have been demonstrated only in small numbers of prototype chips under single test campaigns, with no lot statistics and no qualified part, and the one board tested under full Venus surface conditions failed from a fabrication defect rather than confirming any resolved understanding of long-term reliability [11].
Status
Section titled “Status”Complete. No lander has operated on the Venus surface since the VeGa missions.
