Robotic Refueling Mission
Program pages NASA ISAM: RRM 1 and 2

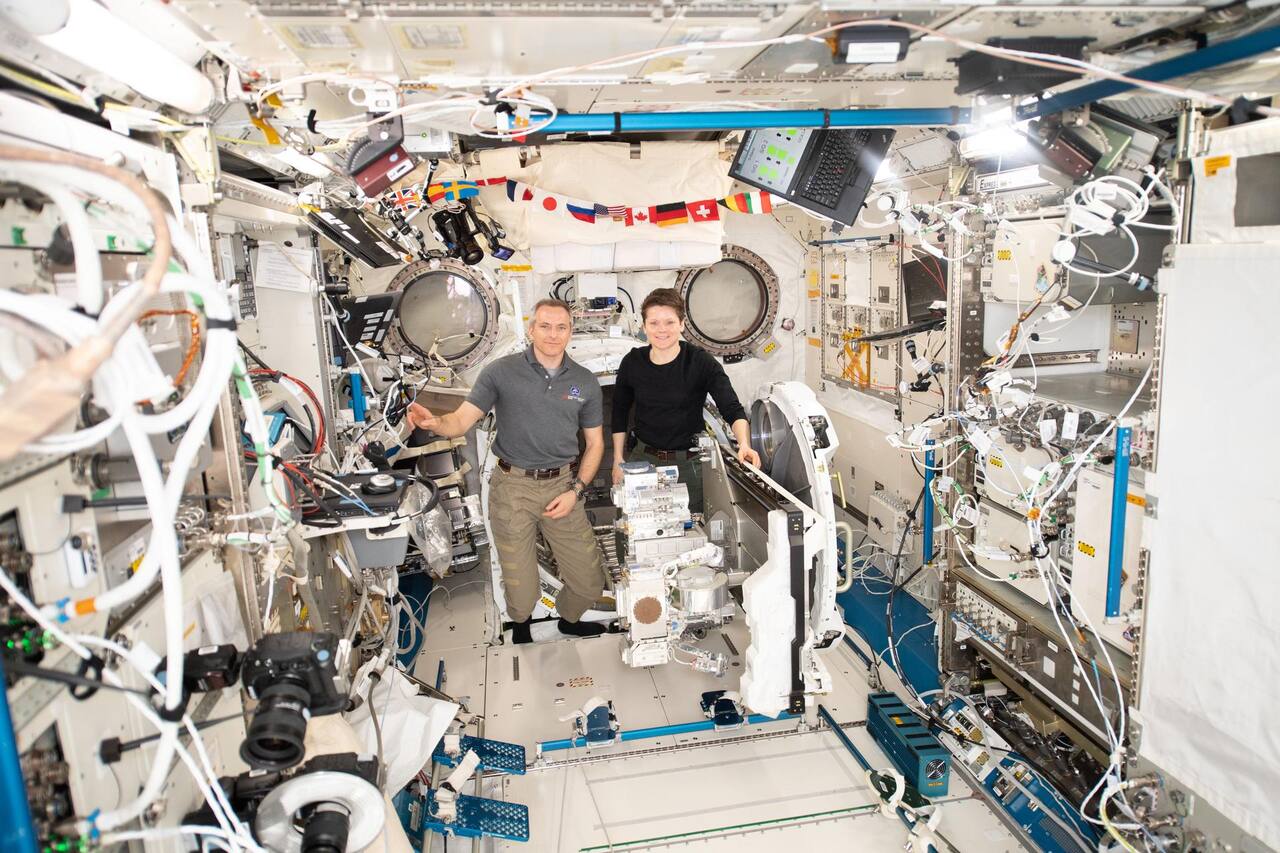

NASA/David Saint-Jacques. Public domain (NASA / US government work).
The problem
Section titled “The problem”Servicing a spacecraft that was never designed to be serviced means working through interfaces built for a technician’s hands: lock wire, thermal blanket closeout tape, valve caps sealed for a launch and never a reopening. The Robotic Refueling Mission was NASA and the Canadian Space Agency’s multi-phase effort to identify and develop the tools, techniques and procedures for refueling and servicing such a satellite from a robotic manipulator [1]. It combined the robotic systems of the International Space Station with the tool design and satellite servicing work of the Exploration and In-space Services division at Goddard Space Flight Center [1].
The environment sets three requirements. The tools have no arm of their own, so every task is executed through the station’s Special Purpose Dexterous Manipulator (Dextre) on the Space Station Remote Manipulator System, commanded by operators on the ground [1]. A description written before Dextre was commissioned gives a three-step orbital replacement unit exchange sequence and the case for ground-controlled maintenance to cut crew time on external work; it reports no on-orbit performance, and Dextre’s published geometry in a specification compilation is 3.35 m and seven degrees of freedom [19] [26].
The second requirement is the thermal and disturbance environment. RRM3 observed the disturbance directly: its source tank liquid de-stratified at about 200 micro-g during an ISS reboost with the cryocooler off [29].
The third is the ground-to-flight gap. Free-floating manipulator dynamics cannot be fully reproduced on the ground [10], and storage of a cryogen over months, or the behavior of a cooler coupled to a liquid in orbit, could be learned only in flight, which is the argument for RRM3 as an external payload [3].
What has flown
Section titled “What has flown”RRM Phase 1 (2011). The module launched on STS-135, the final Shuttle flight, and was removed from the payload bay by an EVA crew member, the last payload ever removed that way; the SSRMS then used the SPDM to relocate it to ELC4 [1] [2]. NASA’s overview describes a washing-machine-sized cube of about 550 pounds and 33 by 43 by 55 inches, carrying activity boards and four stowed tools plus 1.7 liters of ethanol for the fluid transfer demonstration [30]. Operators at NASA JSC and CSA used Dextre to cut lock wires, manipulate fasteners and thermal blanketing, remove caps, connect to and reseal a fuel port, and transfer fluid in zero gravity; Phase 1 also operated typical door latches and manipulated valves on a dummy coolant valve panel task board [2]. Ethanol rather than a propellant was flown to limit risk to the station and its crew, according to the overview [30].
RRM Phase 2 (2013 to 2017). Task boards and the VIPIR borescope launched on HTV-4 and ATV-5, and the hardware was installed on the RRM module by Dextre in April 2015 [1]. It added electrical and coolant adapters, including a Coolant Line Adapter tethered on a spring reel to simulate hose forces, with no coolant transferred. Phase 1 and 2 hardware was removed in March 2017 and destroyed on the re-entry of SpaceX CRS-10, except the Safety Cap Tool and Task board 4, returned as pressurized cargo [1].
RRM3 (2018 to 2019). The Fluid Transfer Module, three tools and a mounting pedestal launched on SpaceX CRS-16 on 5 December 2018 [1] [4]. It carried a 50 liter source and 10 liter receiver dewar pair, each with its own cryocooler [29]. About 19 kg of liquid methane was held in zero boil-off storage for nearly six months, four of them on orbit [3]. In April 2019 a payload power glitch took out the cryocooler output circuits unrecoverably, and the methane was vented through the burst disk, blowing down to 5 psi in about 90 seconds; no on-orbit transfer was performed [29]. Most of the robotic tools were still maneuvered and operated afterward, as the station schedule allowed [3].
Related flown ISS robots. RRM sits beside other station robots whose records show the same limit on published measurement. Robonaut 2 completed six checkout operations and task board work, and the account reports no task success rates or positioning accuracy [15]. Astrobee replaced the SPHERES cold gas thrusters, which were confined to a two meter cube by ultrasonic beacon triangulation, with impeller propulsion at about 0.1 psi plenum pressure and 11 m/s exhaust against 25 psi and 250 m/s [17] [18]. Its pre-flight papers give mass as about 6 kg, against about 10 kg as flown, and the flown system’s operations record is [16].
What is being tried now
Section titled “What is being tried now”Ground emulation of free-floating servicing (ground test). Because true free-floating dynamics cannot be reproduced on the ground, each servicing developer substitutes a different approximation. Goddard ran flight-representative tools on a six degree-of-freedom industrial arm against an OTCM Simulator supplied by MDA, the builder of the SPDM end effector [1]. DLR’s EPOS 2.0 uses two KUKA robots, one on a 25 m rail, under admittance control so tip impedance reproduces that of the simulated satellites [12]. Surveys list flat-floor air bearing tables and dedicated rendezvous simulators as further rigs [9] [10] [11] [14].
Free-floating base control (simulation and bench). For an uncontrolled base, formulations carry momentum conservation into the kinematics so that base attitude rates are eliminated; the reviews restrict their scope to rigid systems in near-Earth orbit [9] [10]. RRM’s Dextre sits on the SSRMS, a heavy stiff base, so these effects are small there and none of these formulations was exercised by RRM.
Large manipulators as the carrier. The European Robotic Arm launched in 2021 on the Nauka module with 11.3 m reach and seven degrees of freedom; the ESA brochure quotes 5 mm accuracy as a general teleoperation figure with no conditions [21] [26]. The Chinese Space Station manipulator paper compares its design against SSRMS, JEMRMS and ERA with pre-flight values [23], and the Tianhe and Wentian arms combine to 14 degrees of freedom under a console subsystem verified only qualitatively [27]. NASA’s catalog lists the Core Module Manipulator and Experimental Module Manipulator as brief summaries without sources for their figures [25]. Surveys of flown space manipulators place Canadarm2 and the newer Chinese arms in the same lineage [14] [24].
Propellant transfer follow-ons (flown only as RRM tools; flight hardware canceled). Restore-L’s Propellant Transfer Subsystem inherited a hose management assembly and a seal-less hypergolic pump aimed at the problem RRM’s EVR Nozzle Tool addressed at small scale, now for a full operational transfer [5]. OSAM-1 carried that further: a qualified Hose Management Assembly deploying a metal hose at about 0.35 cm/s, a flow meter rated for microgravity and vacuum, and a Hypergol Refueling Tool sized to deliver about 30 gallons of hydrazine to Landsat 7, qualified through 12 TVAC cycles and 200 hose abrasion cycles [6]. The project was canceled; the independent review concerned cost and schedule, not hardware performance [6].
Rendezvous, capture and relocation (flown elsewhere, proposed for ISS). Orbital Express is the flown precedent for robotic servicing in free flight. The Orbital Express demonstration (ASTRO servicer and NextSat client, launched 8 March 2007, ended July 2007) transferred hydrazine and exchanged battery and computer units by robotic arm, with no tabulated accuracy or load data in the program summary [22]. A proposed Dextre Pointing Package would have mounted rendezvous sensors on the arm and was never flown, so its pointing results are simulation [13].
Cryogen management (flown in part). Zero boil-off storage, radio frequency mass gauging, wick-and-heater autogenous pressurization and integrated multi-layer insulation were demonstrated on orbit; no-vent transfer, liquid orientation at the transfer line inlet and freezing in microgravity were not [3]. NASA’s taxonomy of servicing functions, tracked since 2021, places RRM under refueling and fluid transfer [7] [8] [30] [6].
The numbers
Section titled “The numbers”Specifications
Section titled “Specifications”| Parameter | Value | Source |
|---|---|---|
| Phase 1 module mass | 250 kg (550 lb) | [30] |
| Phase 1 module envelope | 838 x 1092 x 1397 mm (33 x 43 x 55 in) | [30] |
| RRM3 Fluid Transfer Module mass | 318 kg (700 lb) | [1] |
| RRM3 FTM envelope | 762 x 1143 x 1143 mm (30 x 45 x 45 in) | [1] |
| Tool interface | SPDM ORU and Tool Changeout Mechanism | [2] |
| Cameras per tool | 2, orthogonal | [2] |
| Common tool structure | Tool and Vision Support Structure, providing stowage, electrical and vision interfaces | [2] |
| Phase 1 fluid flown | 1.7 liters of ethanol | [30] |
| RRM3 cryogen flown | about 50 liters of liquid methane (about 19 kg at launch fill) | [4] [3] |
Mission profile
Section titled “Mission profile”| Event | Date | Source |
|---|---|---|
| Phase 1 module launched on STS-135 | 2011-07 | [1] |
| Installed on ELC4 by SPDM | 2011-09 | [1] |
| Phase 2 task boards and VIPIR launched on HTV-4 and ATV-5 | 2013-08, 2014-07 | [1] |
| Phase 2 hardware installed on the RRM module by SPDM | 2015-04 | [1] |
| Phase 1 and 2 hardware removed from the station | 2017-03 | [1] |
| RRM3 launched on SpaceX CRS-16 | 2018-12-05 | [1] [4] |
| SPDM installed the FTM on ELC1 | 2018-12 | [1] |
| SPDM installed the tool pedestal and tools | 2019-04 | [1] |
| Cryocooler failure; stored liquid methane vented | 2019-04 | [29] |
| FTM scheduled for de-orbit | 2022 | [1] |
Two EXPRESS Logistics Carriers hosted the payloads: ELC4 on the starboard-nadir side for Phases 1 and 2, ELC1 on the port-nadir side for RRM3 [1].
Tools and adapters
Section titled “Tools and adapters”| Item | Phase | Function |
|---|---|---|
| Wire Cutter Tool (WCT) | 1 | Cut lock wires between fill and drain valves; a small gripper manipulates thermal blanketing, and a blade cuts blanket closeout tape |
| Safety Cap Tool (SCT) | 1 | Remove and stow a fill and drain valve safety cap and its seal |
| EVR Nozzle Tool (ENT) | 1 | Open a fuel valve, transfer fluid through it, and close it |
| Multi-Function Tool (MFT) | 1 | Carrier for several small adapters, for tasks such as removing fuel valve caps or a gas plug |
| Electrical Plug Adapter (EPA) | 2 | Capture and remove a connector turnaround plug |
| Wire Harness Adapter (WHA) | 2 | Mate an electrical plug and run a connectivity check |
| Vent Plug Adapter (VPA) | 2 | Insert into a vent line to seal a gaseous line before refueling |
| Coolant Line Adapter (CLA) | 2 | Mate a coolant fitting, tethered on a spring reel to simulate hose forces; no coolant transferred |
| Blind Mate Adapter (BMA) | 2 | Connect an array of SMA plugs in a receptacle box |
| VIPIR | 2 | Flexible tube with a camera at an articulatable tip, navigated through conduits to inspect inside a spacecraft |
| Cryogen Servicing Tool (CST) | 3 | Capture and feed a flexible, non-fixed cryogen hose into a receiver tank |
| VIPIR2 | 3 | Upgraded cameras; the only RRM tool to transmit video over wifi rather than through the SPDM and SSRMS data lines |
| MFT2 | 3 | First and only RRM tool with adjustable Camera Positioning Mechanisms |
| Cryogen Coupler Adapter (CCA), Xenon Coupler Adapter (XCA) | 3 | Fluid transfer through fixed dedicated supply hoses |
Source: [1]. The MFT is the program’s argument about mass: exchangeable adapters rather than a separate tool per task save mass and volume [1]. Task board 2 held a tertiary cap and a safety cap with their wires, both dummy caps not plumbed into the fluid system, a test port panel for blanket manipulation, and three machine vision tasks: an explosive bolt hole simulation, a Hubble J-hook, and a Hubble door latch [2].
RRM3 cryogenic results
Section titled “RRM3 cryogenic results”| Item | Result | Source |
|---|---|---|
| Zero boil-off cryogen storage | Achieved, nearly 6 months total, 4 months on orbit; 165 days on orbit by the operations deck | [3] [29] |
| Methane storage band | 92 to about 110 K, burst disk 65 psia | [3] |
| Receiver dewar with integrated MLI | Methane tank temperature 70 to 82 K on orbit, against a triple point of 90.7 K | [3] |
| Radio Frequency Mass Gauge | Mass gauging achieved on the ground and in microgravity | [3] |
| Turbine flowmeter | Partially successful on the ground, unreliable, not used on orbit | [3] [29] |
| Liquid and vapor detectors | Distinguished liquid from vapor during storage; ambiguous during ground transfers | [3] |
| Autogenous pressurization by wick and heater | Achieved on the ground and on orbit | [3] |
| No-vent methane transfers | 5 on the ground at KSC (9.5, 1, 8.5, 0.8 and over 10 liters); two unsuccessful; the fifth liquid-locked the receiver and ruptured an inner burst disk | [3] [29] |
| Partial-vent argon transfers | Under 3 percent of mass lost | [3] |
| Wick development test | LN2 lifted 1.25 cm with up to 48 W on 16 cm^2, one g surrogate; 200 liter per hour zero-g target untested | [28] |
| Fluid orientation at transfer line inlet, freezing in microgravity | Not tested on orbit | [3] |
The ground cryocooler was a poor predictor of on-orbit behavior: time constants were much shorter and the cold finger to bulk methane coupling weaker than characterized at KSC [3]. The operations team failed to recognize the liquid lock for two days [29].
Thermal
Section titled “Thermal”RRM uses a cold-biased design with a radiator on the back of the enclosure, multi-layer insulation and heaters; analysis over the full ISS attitude envelope closes only with an ISS flight rule prohibiting RRM operation above 60 degrees beta [2].
| Source | Allocation | Notes |
|---|---|---|
| Shuttle, 28 V | 230 W at maximum voltage, about 216 W nominal | 4 circuits on the fluid transfer system plate; two mechanical thermostats in series per circuit, cycling between +25 and +30 degrees C |
| ISS, 120 V | 290 W at maximum voltage, about 245 W nominal | Two feeds, on the fluid transfer system plate, the fluid flex line, and the enclosure next to the fill and drain valves |
| OTCM, 15 V | 5 W per camera, two per tool, and 10 W per tool electronics box | Camera thermostats -25 to -16 degrees C, tool electronics box -32 to -26 degrees C |
Values from [2]. Tool heaters are powered only through the OTCM, so no heater power is available while a tool is stowed.
Ground operations and procedure development
Section titled “Ground operations and procedure development”Goddard robot operators wrote draft procedures once high-fidelity CAD or hardware existed, and prototypes were tested on industrial robots to refine tool design [30]. Hardware testing used Goddard’s Servicing Technology Center with an industrial arm and an OTCM Simulator [1]. At least one campaign on MDA’s Ground Trainer ran for each phase, and in some cases torques, forces or step order in the Goddard procedures were not achievable with SPDM [30]. Every maneuver was expressed relative to the previous location rather than as Cartesian positions or joint angles, which let JSC and CSA operators translate them for SSRMS and SPDM [1] [30].
The Goddard visualization software was extended for RRM3 to simulate tool cameras; the simulation does not verify contact forces, OTCM turns and torques, or flexible hose motion [2].
NASA KSC loaded approximately 50 liters of liquid methane into the source dewar before launch, with ground support equipment developed from nothing: a 450 liter LNG microfueler, a purpose-built servicing panel, a high-precision scale, a nitrogen purge holding oxygen below 1 percent, and NFPA 497 Class 1 Division 2 zoning [4]. Grade B methane at 99.9 percent purity proved unobtainable and the payload flew with 98.2 percent LNG [4] [3]. The Restore-L and OSAM-1 subsystems handle storable hypergolic propellant, a different ground safety problem [29].
Lessons recorded
Section titled “Lessons recorded”Designing robotic tools for space requires attention to materials, indicators, and ground versus flight use cases [1]. Mechanical status indicators are preferred over electronic ones, every action needs a confirmation where there is no recovery path, and machine vision fiducials fail under sunrise and sunset shadow [2]. The rigid industrial arm at Goddard could not react to the large axial loads the Cryogen Coupler Adapter receptacle required, so flight-like practice for that task was impossible before flight [30]. Camera view quality, frame rate and position requirements are driven by troubleshooting, which is the reasoning behind MFT2’s adjustable cameras and VIPIR2’s wifi path [1]. The RRM3 fluid campaign spent five ground no-vent transfers to buy back limited on-orbit time [3]. Catalogs and CSA’s public Dextre page serve as pointers to the carrying robot’s specifications rather than as a source for them [20].
What is not established
Section titled “What is not established”RRM3 never performed an on-orbit cryogen transfer, so fluid management at the transfer line inlet, no-vent transfer and freezing a cryogen have no flight answer [3] [29]. The Phase 1 thermal design rests on analysis, not thermal vacuum or on-orbit temperature data, and part of its margin is an operational restriction [2]. The wick that flew was sized from one-g liquid nitrogen testing whose authors say the model under-predicts heat into the liquid at low power, so the zero-g rate target was an assumption [28]. The Dextre sources here are a pre-commissioning description and a landing page with no on-orbit performance data [19] [20]. Camera color and indicator findings are operators’ observations, not controlled comparisons [1]. The ERA, Chinese arm and Astrobee figures are specification or pre-flight values [17] [18] [21] [23].
