Space Robotics

DLR Institute of Space Systems Landing and Mobility Test Facility

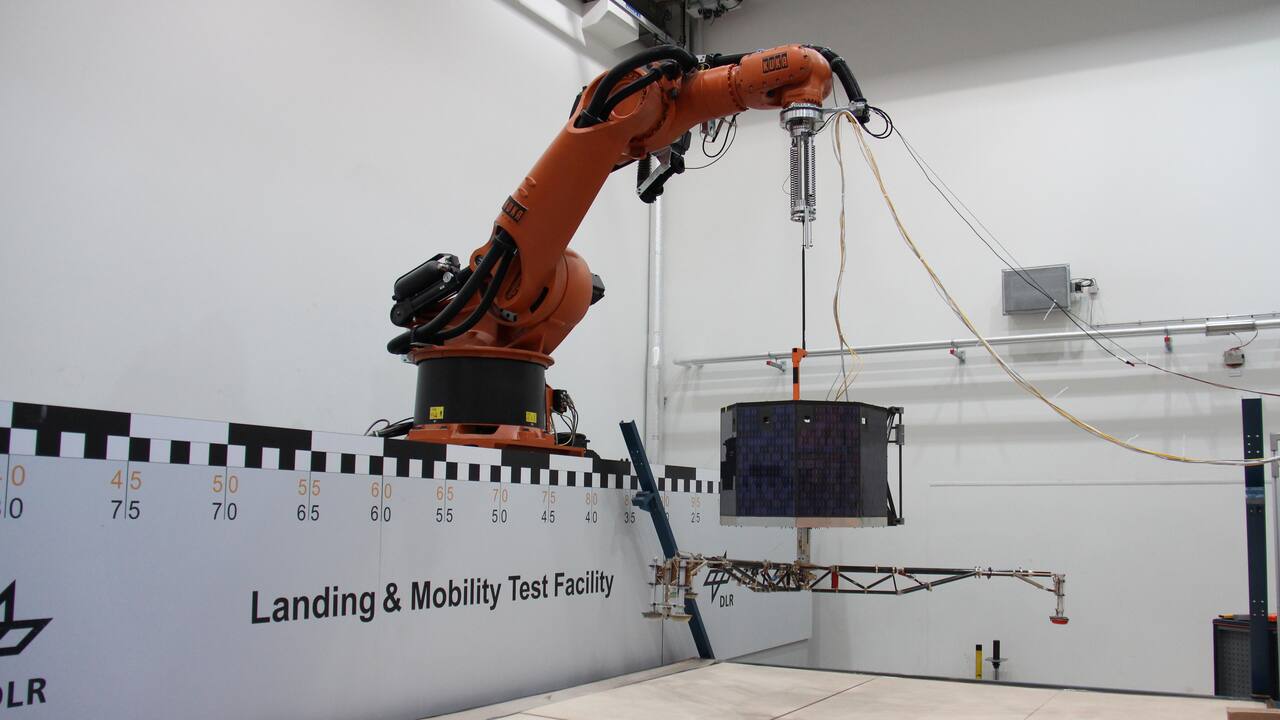

A KUKA KR500 on its linear rail holds a Philae model over the LAMA soil bed through the weight offloading suspension visible at the flange, with the lander's three-legged gear extended and a photogrammetric scale board along the bin wall.

DLR. Source: [2]. CC BY 3.0.

LAMA is a landing dynamics laboratory, not a drop tower. A six-axis industrial robot on a 12 m linear rail carries the test article through a commanded touchdown trajectory while a suspension device between the robot flange and the article removes most of its weight, so a lander designed for 1.6 m/s2 or for a comet can be dropped onto real soil at Earth gravity [1][2]. The soil is the point: the operators state that the facility exists because footpad and landing gear behavior on granular media cannot be obtained from a pendulum or a tilted plane, which “does not allow tests on granular media”.

It is run by the Institute of Space Systems in Bremen, in the Landing and Exploration Technologies department, which is a different DLR institute some 700 km from the Oberpfaffenhofen terramechanics laboratories, TROLL and the Planetary Exploration Laboratory [1]. The two rigs in the hall correspond to the two halves of the name: a landing rig that flies an article into the soil, and a mobility rig that drags a footpad or a wheel horizontally through it [1][2].

Laboratory data

Section titled “Laboratory data”
ParameterValue
OperatorDLR Institute of Space Systems, Landing and Exploration Technologies
LocationRobert-Hooke-Strasse 7, 28359 Bremen, Germany
CommissionedIn service by 2010; first published campaign 2011
TypeRobotic landing dynamics rig with active weight offloading, over a soil bin
Floor areaSoil bed 10 x 4 m, in a dedicated test cell. Cell area not published
CapabilitiesLanding test rig, mobility rig
Simulant or terrainWF34 quartz sand; MSS-D lunar simulant; concrete
InstrumentationATI Theta force-torque transducer in the robot flange
Ground truthRobot hand pose, 0.15 mm, every 12 ms; video to 600 fps
Fidelity limitsOffload interference remains; soil preparation dominates error
AccessInstitute-run. No external user route published
Cited byphilae [2]; mmx-rover [3]

Source: [1][2].

Capabilities

Section titled “Capabilities”

Landing test rig

Section titled “Landing test rig”
ParameterValue
Working volumeDrops onto a 4 x 3 m part of the 10 x 4 m bed; 12 m rail travel
Test article limitsRobot static load 500 kg; drop object 125 to 300 kg
VacuumNot applicable. No vacuum capability described
TemperatureNot applicable. Not a thermal facility
IlluminationNot applicable. No solar simulator described
Simulant or terrainWF34 quartz sand, concrete, wood, oiled steel
SlopeNot set as terrain. Impact angle from the velocity ratio
Gravity offloadActive, spring suspension on the flange; accuracy not published
InstrumentationATI Theta force-torque; Megatron RC20 stroke transducer, 1 kHz

Source: [1][2].

The robot is the test machine. A KUKA KR500 on a KL1500-2 linear axis gives 12 m of lateral travel over the bed, and flies the article along a commanded trajectory whose horizontal and vertical velocity components set the impact angle; vertical velocity comes from the release height, and a pneumatic parallel gripper on the flange releases the dummy mass at a preprogrammed instant once the robot has reached a horizontal velocity of up to 1 m/s [1]. Bed depth is not published. The facility is described as five elements: the robot, the rail track, the suspension device, the controller and the soil bin, in a dedicated test cell. Of the drop object mass, the operators note that “300 kg is also the maximum payload mass of the test object, caused by the configuration” [2].

The suspension device between the flange and the article is what makes a 1 g facility useful for a low-gravity landing; the chain from the flange down is an upper plate on the robot’s force-torque sensor, linear guide pillars constraining motion to the gravity axis, tension springs sized to the article’s mass, a movable lower plate on slide bearings, a piezoelectric brake, a carbon fiber beam stiff along its length and compliant in bending, and a cardanic joint whose center is trimmed to coincide with the article’s center of gravity [2]. Rotational freedom is about 30 degrees about x and y, reduced to about 17 degrees about y by the hood structure of the Philae model.

Two control modes exist. In the simpler one the robot flies a preprogrammed trajectory. In the sensor-driven mode the force-torque transducer in the hand closes a loop whose objective is to “maintain a constant weight load in the vertical direction and zero lateral forces in the robot hand”, which is how a comet-gravity or lunar-gravity landing is held through a touchdown that involves sliding and rebound [2][4].

Mobility rig

Section titled “Mobility rig”
ParameterValue
Working volumeDrag container 3.2 x 1.2 m, set on top of the large bed
Test article limitsFootpad or leg on the flange; robot static load 500 kg
Simulant or terrainMSS-D fine lunar simulant, used only here; WF34
SlopeFootpad hinge tilts to 30 degrees, locking in 10 degree steps
InstrumentationInstrumented footpad: 3-axis force, accelerometer, potentiometer

Source: [1].

The mobility half of the facility pulls the article horizontally through the soil rather than dropping it onto it. In drag mode the leg is attached to the flange and pulled through the bin either at constant penetration depth with variable force, or at constant force with variable depth held by the robot controller, over a motion composed of a 1 m acceleration phase, a 1.5 m constant speed phase and a 0.5 m deceleration phase [1]. It uses its own smaller container placed on top of the large bed, which is also the only place the fine MSS-D simulant is used. Drag runs are noisier than drops, as the repeatability figures in the soil section below show.

The drag rig measures a footpad or a leg being pulled through soil at a controlled depth and force, which is the small-scale, single-body version of what a rover measures across a whole traverse. The only real-vehicle trafficability record at this scale is the Lunar Roving Vehicle’s: 2 to 3 percent wheel slip at a 6 to 7 km/hr cruise speed, over terrain up to 19 to 23 degrees, at an energy cost of 35 to 56 watt-hours per kilometer of which only about 15 percent went into the soil and the terrain rather than the vehicle itself [7]. LAMA has no rolling-wheel test mode and produces no traverse-scale number to set against that figure; its drag rig is a single instrumented foot or leg, not a wheel, and it runs over a few meters rather than kilometers.

Instrumentation

Section titled “Instrumentation”

Measurement is split between the article, the robot and the room. The article carries accelerometers, potentiometers and force sensors at 1 kHz; the robot contributes hand pose, orientation, forces and torques from the control bus at 12 ms intervals with 0.15 mm position accuracy; and external video runs to 600 frames per second [1][2]. All three streams go to one central data acquisition system so that they share a time base.

The named sensor set is an ATI Theta three-axis force-torque transducer in the robot hand flange, a Megatron RC20 linear transducer on the suspension stroke at 1 kHz, an iMAR iVRU-BB-M inertial measurement unit at 100 Hz, and Kistler 8792A25 and Bruel and Kjaer DeltaTron 4506 accelerometers at 1 kHz, alongside landing gear housekeeping at 1 kHz [1][2]. The Philae specimen carried the flight landing gear housekeeping signals, gear stroke, tilt angle between gear and body, braking currents and touchdown signals, next to a flywheel generating the same angular momentum as the flight unit and ballast trimmed to the flight model mass, center of mass and moments of inertia [2].

The instrumented footpad built for the 2011 campaign is the clearest example of the design constraint the facility imposes: a three-axis accelerometer, a hinge-axis linear potentiometer and a three-axis force sensor, all sealed inside a plastic boot because the sensor is going into the sand [1].

Video is used as an independent check rather than as illustration. In the Philae campaign it established foot contact times to 83 ms and gave a measurement of hood tilt independent of the potentiometer, which is how the tilt limiter’s real performance was found [1].

Soil selection is documented as a compromise rather than a match. WF34 and MSS-D were characterized against lunar regolith: cohesion 0.06 kPa for WF34 and 0.01 kPa for MSS-D against 0.44 to 0.62 kPa; bulk density 1.4 and 1.3 against 1.4 to 1.6 t/m3; Young’s modulus 1900 and 1000 against about 180 kPa; friction angle 32 plus or minus 2 and 31 plus or minus 2 degrees against 42 degrees [1]. The lunar figures are the top-15-cm Table 9.12 values from the Apollo and Lunokhod penetrometer record, recommended as a depth-averaged Mohr-Coulomb fit rather than a direct measurement, and the friction angle falls as the confining stress rises [6][7]. The operators state the position plainly: “the values for the simulants are in the range but not exactly the lunar soil. This is not problematic as long as the numerical simulation uses the same simulant properties”. Preparation uses “special soil preparation methods and a sand glazer” so that “the underground had the same characteristics at each test run”, with no density figure, relative density target or tonnage published [1]. LAMA is therefore a validation rig for a soil contact model, not an environment simulator, and the model is validated against the simulant that was used.

What it does not reproduce

Section titled “What it does not reproduce”

A clean acceleration record. The offload suspension appears in the data. The operators identify a specific run in which “the high negative peak of test run M1234 comes from a hard contact of the sliding part of the weight-offloading suspension to its end block. This is an interference with the effective landing acceleration and has to be separated in the calculation” [2]. More generally, they list weight offloading against the alternatives and concede that model scaling “comes to a practical end… as it leads to unacceptable miniaturization”, that a pendulum or tilted plane “does not allow tests on granular media” and constrains the article’s motion severely, and that weight offloading permits three-dimensional soft soil testing but “however interferences with the offloading device remain” [2]. The 2013 retest quantified the interference against the pendulum it replaced: the LAMA suspension carries a stiffness of 4080 N/m against the earlier pendulum’s 242 N/m, and a damping coefficient of 567 N*s/m is fitted from the combined data so the two rigs’ results can be plotted on the same velocity-against-damper-stroke axes [4].

Free article motion. The rig can suppress real behavior as well as add artifacts. In the 2011 footpad campaign the upward motion of the spherical pads during the slide-out phase was “suppressed here by the robot interface and showed themselves in the higher force levels” [1]. What the pads would have done is inferred from the force record rather than observed, the same kind of inference Surveyor’s own report had to make from imprints and plume craters rather than from a directly observed footpad motion [9].

Repeatable soil. “The main influences of the errors in the test data is caused by the soil properties. Small deviations in the preparation of the soil will lead to large differences in the soil resistance” [1]. The published error figures show where that bites: sinkage 1.1 percent and force 2.6 percent in drop tests, against force 8.7 percent and pitch 32.4 percent in drag tests [1]. The same difficulty runs through the flight-data programs LAMA followed: Surveyor’s own report gives two disjoint cohesion brackets from its vernier engines and its attitude jets that are never reconciled, and Viking’s four surface units carry friction angle and cohesion ranges rather than single values because different reduction methods, footpad penetration, trenching, bearing tests, disagreed on the same ground [9][10]. A controlled ground rig narrows that spread by holding the soil preparation constant, but the LAMA operators’ own error figures show it does not remove it.

Fine regolith at facility scale. MSS-D was restricted to the small drag container “driven by manageability reasons. Too fine grained soils are difficult to handle. They build dust clouds, when they are moved, which affect the measurement equipment and other parts of the test facility” [1]. A drop test therefore lands on quartz sand, not on the fine simulant, and the facility has no answer to the fine-grained dust adhesion behavior that Surveyor measured directly on real lunar material, 250 to 1000 dyne/cm2 on a photometric target and adhesion that grew through the lunar day [9].

Lunar or cometary soil properties. The characterization figures are explicit: the simulants have roughly a tenth to a fiftieth of lunar cohesion, an order of magnitude higher Young’s modulus, and a friction angle 10 degrees lower [1]. For the comet case the operators state outright that “it is acknowledged that surface soil conditions on the comet cannot be reproduced in this type of test facility” [2].

Vacuum, temperature and illumination. None of the three is provided.

Why a robot rig rather than flight-data inference

Section titled “Why a robot rig rather than flight-data inference”

Before LAMA, footpad and landing-gear soil interaction for planetary missions was read back from telemetry after the fact rather than reproduced on the ground. Surveyor’s bearing strength ladder, under 0.1 N/cm2 in the top millimeter rising to 4 to 6 N/cm2 averaged over 6 cm, came from imprints left by crushable blocks, footpads and vernier-engine plumes, reduced through Terzaghi bearing capacity theory rather than measured directly, and its own report gives two disjoint cohesion brackets from two different reduction methods that are never reconciled [9]. Apollo’s soil mechanics report is built the same way, from lunar module descent footage, footpad penetration depth at each landing and astronaut debriefing rather than a repeatable test, closing the loop against the pre-Apollo Surveyor model rather than an independent measurement [8]. Viking’s Mars values likewise came from independently reduced footpad penetration, trench geometry, motor currents, surface bearing tests and backhoe touchdowns on the one flight article each lander carried, with no way to rerun the touchdown; the resulting friction angle and cohesion ranges vary by unit, from 14 to 21 degrees and 0.7 to 3.0 kPa for the drift material up to 27 to 32 degrees and 1.5 to 16 kPa for the blocky material [10]. The lunar cohesion and friction-angle figures LAMA’s own simulant characterization is checked against are themselves an inversion, not a measurement: a cone penetrometer cannot separate the two parameters from a single reading, so the Apollo and Lunokhod record fixes one and solves for the other, and the resulting friction angle falls from about 41 degrees at 5 kPa confining stress to about 21 degrees at 100 kPa in the recommended curved envelope [6][7]. The Apollo lunar module’s own footpad bearing pressure, about 4.6 kPa at touchdown, is roughly a fifth of the pressure a person exerts standing on one foot on Earth, which is the order of load LAMA’s footpad campaign was built to reproduce on a soil bed rather than infer from telemetry [6]. LAMA’s robot-and-offload approach exists to give a granular-media landing a repeatable ground rig instead of a single flight event, or a single penetrometer reading, to read back from.

Where LAMA sits among ground landing tests

Section titled “Where LAMA sits among ground landing tests”

Ground validation of a touchdown splits into five families. Each fixes a different part of the physics and leaves the rest to the model.

Robot-flown article with weight offload on real soil (LAMA). Gravity, soil and article are all physical; only gravity is partly canceled, and the canceling hardware leaves artifacts in the record [2]. It has been used for a flown mission, Philae, and for a mission still pending, MMX [2][3].

Dynamic scaling at full gravity. JPL’s Mars Sample Return lander test avoids offload altogether: with length scaled by 3/8 and acceleration by 8/3, a 155 kg article dropped from under 320 mm reproduces the touchdown of a lander of more than 2300 kg, because full-scale testing would need both a 3000 kg article and a gravity offload [12]. The earlier MSL rover campaign flew a 3/8 mass-scaled rover under a descent stage mock-up on 6 m bridles in more than 80 landings on rigid plate, sand and rock fields at 0.4 to 1.4 m/s, and could not measure initial conditions other than vertical velocity [13]. Scaling needs a single dominant gravity-dependent term to be matched; LAMA instead keeps the article full size and removes weight, which is why it can carry a flight-like Philae model with working landing gear [2].

Multibody simulation with assumed contact. JAXA’s study of the SLIM leg arrangement used 1000-case Monte Carlo sweeps [11] of a 220 kg body [11] on crushable legs and ranked four arrangements from 92.5 [11] to 38.7 percent success [11]. It is simulation only, with contact parameters not measured for the vehicle [11]. A rig such as LAMA is what supplies the measured footpad and soil force data such a model lacks.

Overhead cable and winch offload for people and rovers. The ARGOS facility at Johnson Space Center offloads suited subjects with three active translational axes and passive rotation in a gimbal, avoiding the roughly 30 s limit of parabolic flight at the cost of a small work volume and gimbal-induced motion [20]. Across 14 subjects and 68 configurations the usable gimbal pivot sat 2.5 to 6.4 cm above and 1.3 to 2.5 cm aft of the modeled center of gravity, and a 0.6 cm fore-aft shift was perceptible [19], the same sensitivity that LAMA addresses by trimming its cardanic joint center to the article’s center of gravity [2]. A Michigan Tech overhead trolley tracks an infrared beacon on a rover over a simulant sandbox, and its author describes the control loop as untested [21]. The ATHLETE low-gravity testbed hangs the vehicle from six winches and drives a simulated microgravity trajectory from measured contact forces [22]. None of these lands an article on soil at speed.

Reduced-gravity flight. Parabolic flights put real lunar gravity on soil and wheel together, in 20 to 30 s parabolas that never settle to steady state [23]. They show what an offload rig cannot: reduced-weight testing alone, which is what LAMA’s offload does, overstated mobility, with drawbar pull to weight falling 20 percent or more and sinkage rising up to 40 percent at lunar gravity at equal wheel load, and the equal cone index gradient method overstated it by more [23]. The consequence for LAMA is that its soil stays at 1 g, so soil-body coupling at lunar or cometary gravity is untested in the hall.

Small-body landers show the same split between what has been flown and what has not. MASCOT, a 9.8 kg lander with no attitude control in free fall, bounced to rest on Ryugu after release at about 41 m altitude [14][15]. Its separation mechanism was characterized in drop tower campaigns at ambient temperature and pressure, with flight reconstructions at 6.1 and 6.0 cm/s against a ground estimate of 4.94 cm/s [14]. Its mobility figures in the pre-landing description are ground expectations, and its parabolic flight self-righting validation failed on duration [15]; a two-page abstract announcing the mission lists instruments and plan only [16]. Philae’s pre-landing capability and operations papers give design predictions, not touchdown measurements [17][18]. The LAMA campaign for Philae is the only ground work in the corpus aimed at predicting touchdown on soil for such a lander [2].

Soil: what the bed stands in for

Section titled “Soil: what the bed stands in for”

The simulant frameworks were built for composition and handling, not for touchdown loading. The 2005 workshop set out root and derivative simulants [26], a review argues most simulants were built without adequate input from lunar soil scientists [27], and figure-of-merit scoring extended to asteroid simulants excludes cohesion and friction angle because in situ values are unknown [28]. LAMA’s WF34 and MSS-D are characterized by cohesion, density, modulus and friction angle [1], which is the property set that matters for a footpad but is not the one those frameworks score.

Bed preparation is its own source of scatter. A 150 kg BP-1 bin prepared at Marshall showed undried simulant erupting below 2 Torr and vibration compaction raising mean shear strength only from 1.70 to about 2.3 kPa, with shear strength the only property measured [29]. LAMA’s published preparation is a sand glazer with no density target, and its 32.4 percent drag-test pitch error is consistent with that gap [1].

The lunar record the simulants are compared with was itself taken from objects not designed as penetrometers. Apollo 11 reduced soil strength from footpads of about 700 lb each, an astronaut and a core tube, with no soil instrument flown [25]. Apollo 15 added a self-recording penetrometer, larger core tubes and the rover: in situ density 1.36 to 2.15 g/cm3 and an average rover track depth of about 1.25 cm [24]. Contact models fitted to a rig such as LAMA are then compared with those figures. A NASA survey times five tire-soil models on one simulated drawbar test, from a real-time factor of 0.024 for DARTS-Bekker to 9600 for Chrono-DEM, and states that the soil parameters differed between models so the comparison is not an accuracy ranking [30].

Environment the hall does not provide

Section titled “Environment the hall does not provide”

Lunar dust adhesion and abrasion, catalogd in nine problem categories across all six Apollo landings [31], need activated dust under vacuum; the NASA Glenn bell jar documents a protocol of stirring during pumpdown, 200 C bakeout and thermal cycling for that purpose [32]. LAMA has none of this. Large single-article campaigns also need a test-safety and readiness practice, documented for the MSL thermal vacuum test [33]; no LAMA procedure is published.

Campaigns run there

Section titled “Campaigns run there”

Lunar lander footpad shapes, 2011. Four footpads, spherical and flat-with-rounded-edges in 30 and 40 cm chord at 4 cm height, tested at the MoonNEXT landing envelope: 2 plus or minus 1 m/s vertical, 0 to 1 m/s horizontal, 2.5 plus or minus 2.5 degrees attitude, 0.5 degrees per second rate, with 125 to 300 kg of an 800 kg lander on the pad [1]. At 200 kg and 3 m/s the measured sinkage and peak force were 126 mm at 13.2 kN for the 300 mm spherical pad, 115 mm at 13.6 kN for the 300 mm flat pad, 80 mm at 25.0 kN for the 400 mm spherical and 66 mm at 28.3 kN for the 400 mm flat. Drag tests at 30 mm depth and 1 m/s found the spherical pads carrying 25 to 125 percent higher vertical and lateral loads than the flat ones [1]. The conclusion was that spherical pads slide rather than dig in, and that a 78 percent increase in pad size buys about 60 percent less sinkage [1], a size-versus-sinkage trade of the same kind Viking’s blocky and drift units showed at full lander scale, where the denser, coarser unit carried a higher friction angle and a wider cohesion range than the finer drift material [10].

Philae touchdown requalification, 2012 to 2013. Philae’s original qualification used a 3.96 m pendulum rig between 1996 and 2002, which could not touch down on loose material and constrained the lander’s motion [2][4]. When the target changed from comet 46P/Wirtanen to the more massive 67P/Churyumov-Gerasimenko the landing velocity and kinetic energy rose, and the lander was already at the launch site, so the design could not be changed. Four baseline and three special test groups ran at 0.1 to 1.1 m/s vertical and 0 to 0.21 m/s lateral, at 0 and 17 degrees pitch, with the flywheel off, slow and fast, onto wood, oiled steel, WF34, MSS-D, concrete and a slope with mixed surface [2]. Three findings matter. The touchdown indicator’s detection floor is higher on soft ground, 0.5 m/s against 0.2 m/s on hard surfaces [2]. The tilt limiter intended to hold plus or minus 3 degrees was measured allowing “at least plus or minus 9 degrees”. MSS-D behaved closer to hard ground than WF34 did, with the ice screws sinking less but retracting much harder in MSS-D [2].

Philae’s first touchdown at Agilkia gave a way to check the ground work against a real landing. The damper potentiometer trace from that touchdown, read through a lumped two-mass spring-damper model of the lander, backs out a comet surface compressive strength of about 2 kPa for a constant-strength soil model or 3 kPa per meter for a depth-dependent one, converging with an independent multi-body simulation on 1.5 to 2 kPa once ground slope is corrected for [5]. That figure rests on a single event with only a handful of time-resolved damper positions in the first 200 ms of contact, assumes all three feet struck soil at once even though the imagery suggests one foot hit a boulder strut, and extrapolates past the 135 mm depth the model is stated to be valid for to fit penetration depths as deep as 0.73 m [5]. The comet strength the ground campaign was rehearsing against turned out to be lower than either simulant’s characterized cohesion, which is consistent with the operators’ own caveat that comet soil conditions were not expected to be reproduced in the facility [2]. It is also well below the lunar range LAMA’s own simulants were built against, 0.44 to 0.62 kPa in the top 15 cm by the Apollo and Lunokhod record, so the two bodies the facility has been used to prepare for sit on opposite sides of the simulant’s characterized strength rather than bracketing it [6][7].

MMX rover preliminary model, 2020. Drop tests with the preliminary model of the MMX rover were run in LAMA, which is the most recent published evidence that the facility is in use [3]. No campaign report gives the conditions or the results, which leaves the MMX case in the same position Apollo’s own soil mechanics report was in before a dedicated test rig existed: a landing whose ground interaction has to be read back from whatever instrumented record the mission itself returns [8].

What is not established

Section titled “What is not established”

The offload accuracy of the LAMA suspension is not published, and the only quantified interference is the stiffness and damping fit from the Philae retest [4]. Bed depth, density and relative density are not published [1]. No campaign report gives the MMX rover conditions or results [3]. No LAMA data exist at lunar or cometary gravity on the soil itself, and the reduced-gravity flight record shows reduced-weight testing overstates mobility [23]. The Philae comet strength estimate rests on one touchdown with few time-resolved damper positions [5]. Simulation-only landing studies such as SLIM’s have no matching published LAMA test [11]. External access routes are not published.
